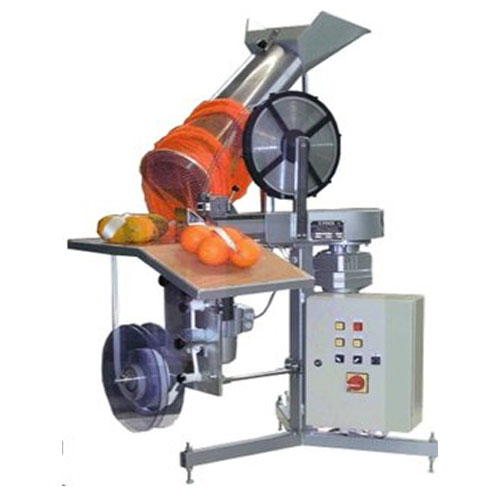

Semi-Automatic Net Clipping Machine (HCL 912)

Diaphragm Valve
Product Enquiry

Special Features


  • Semi-automatic net clipping machine for fruits and vegetables like potatoes, onions, citrus fruit and other solid products in nets
  • Download Leaflet HCL 912
  • Optionally available:
  • Filling device, net tube, labelling unit for printing and attaching labels
  • - other products on request

Diaphragm Valve
Diaphragm Valve
Diaphragm Valve


Standard Equipment
  • Base of heavy steel construction
  • Extremely sturdy and robust clipping-head, mounted on steel shaft. Moveable parts specially tempered
  • Supports for clip material and labelling ribbon
  • Plastic coated angularized working table
  • Set of electric gear-stop drive motors
  • Electronic control system
  • Complete electric cabling
  • Power supply cable (4.0 metres)
  • 5pol. with plug
Technical Data
  • Clipping head : 5 or 6 mm

    • Clip Specification:

  • Length per clip : 18 mm/20 mm
  • Width : 5mm or 6mm
  • Thickness : appx. 0.3-0.4mm

    • Electric power:

  • Appx. 0.75 kW, 220/380 V, 3- phase, 50
  • Cps. (other voltage and/or frequency on request)
  • Height of Working Table : appx. 680 mm
  • Overall Dimensions : Length: appx. 850 mm Width; appx. 600 mm Height: appx. 1200 mm
  • Net Weight : appx. 105 kgs
