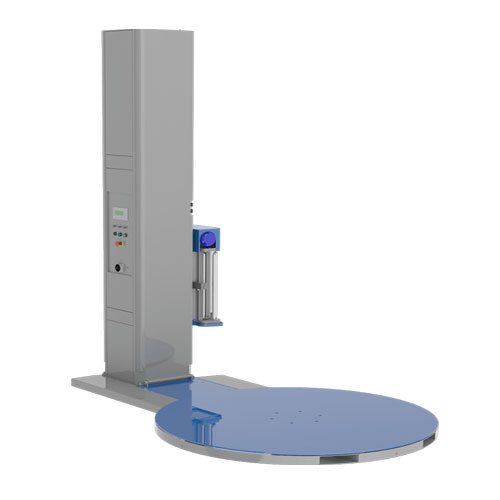

| Model No | : | MH-FG-2000B |
|---|---|---|
| Power | : | 220 V / 1 P / 50 Hz. /1 KW |
| Turn Plate Speed | : | 0-12 rpm |
| Turn Plate Dia | : | 1500 mm |
| Piller Height | : | 2400 mm |
| Max. Ht. of the palette | : | 2200 mm |
| Type | : | LLDPE / LDPE Steach film |
|---|---|---|
| Internal core dia | : | 50mm - 76mm |
| External core dia | : | less than or equal to 250 mm |
| Height | : | 100 mm - 500 mm |
| Thickness | : | 17 - 25 microns |
| Strachability | : | upto 300% |

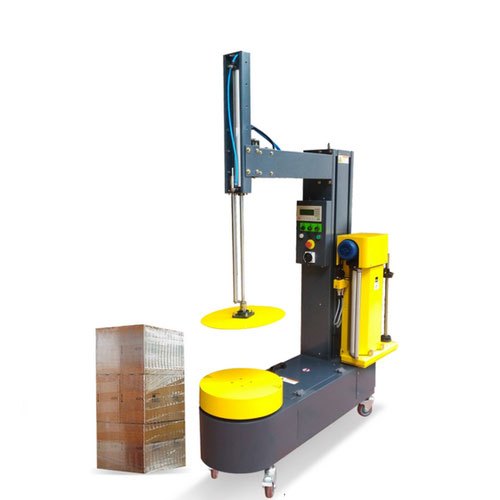

| Power supply | : | 1P / AC220V/50Hz/.5KW |
|---|---|---|
| Air Pressure | : | 4Kg/cm2 ~ 6Kg/cm2 |
| Air Consumption | : | 0.7m3/hr |
| Machine size | : | W400mm X L950mm X H1650mm |
| Speed of turnable | : | 20r/min (adjustable) |
| Height of column | : | 1200 mm (wrapping height within 500-650) |
| Product Weight | : | within 8 Kg |
| Wrapping Height | : | 500-650mm |
| Product Specification | : | Diagonal upto 900mm |
| Mode of outputting film | : | Pre strech with mechanical and power system |
| Parameter of film | : | PE strech film |
|---|---|---|
| Specification | : | 100 ~ 500mm |
| Thickness | : | 17 ~ 25µm |
| Outside diameter | : | less than or equal to250 mm, diameter of inside paper core 50 ~ 76mm |
| Strach Rate | : | 100% ~ 300% |
