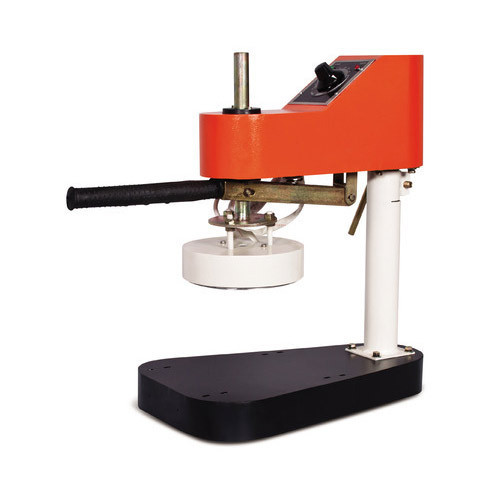

For pilfer evident and leak proof sealing of aluminum foils on cans, cups, bottles, plastic trays and containers.
Height adjustability and provision for heat control.
Strong cans, cups and bottles can be sealed without extra attachments. Flimsy Cups and trays need extra support at the bottom of the neck, otherwise the cup or neck may be crushed during sealing operation. The support has to be met with the shape of the cup to be sealed. (Impart dimensional samples or sketches for design of appropriate support).
Model |
Height of the Containers |
Sealing Dia Max |
Power Watts |
Voltage |
Dimensions (mm) |
Weight |
LxWxH |
(Kg) |
|||||
FS 1045 |
0 to 450mm |
90mm |
200 |
AC 240 |
560 x 250 x 650 |
8.5 |
FS 1545 |
0 to 450mm |
140mm |
300 |
AC 240 |
560 x 250 x 650 |
11 |
FS 2045 |
0 to 450mm |
190mm |
450 |
AC 240 |
560 x 250 x 650 |
13.5 |
FSD 1045 |
0 to 170mm |
90mm |
200 |
AC 240 |
460 x 170 x 250 |
4 |
FSD 1545 |
0 to 170mm |
140mm |
300 |
AC 240 |
460 x 170 x 250 |
4.5 |
