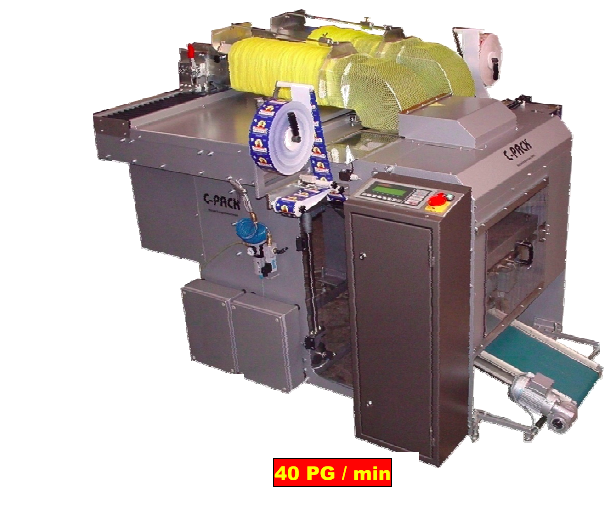

Original-C Automatic Clipping Machine (VAC 996)


Diaphragm Valve
Product Enquiry

Special Features

“Original-C“ automatic clipping machine to close and separate machine-usable nets fully automatically.

Download Leaflet VAC 996

Supplementary Equipment
  • Label dispenser
  • Thermo-barcode printer
  • Label transporting units
  • Intermittent discharge conveyor


Diaphragm Valve
Diaphragm Valve


Technical Data
  • Performance : Max. 40 Packs/min (depending on type of film band and product)
  • Power supply : 230/400 Volt N/PE, 50 Hz, approx. 1.5 kW (other connections on request)
  • Compressed air : 6 bar, approx. 9 I/pack
  • Machine weight : Approx. 900 kg
  • Package weights : 1,0– 4,0 kg (depending on product size)
  • Length of PE-film band : variable
  • Outer net tube width : 230 or 270 mm
  • Infeed height : 1530 mm
Standard Equipment
  • Vautomatic net tube change for continuous operation (two net tubes positioned at an angle of 6’ with intermittent transport belt)
  • Net draw-off by means of driven net draw-off roller
  • Net length infinitely adjustable
  • Net draw-off by means of two lifting tables with welding bars
  • Two transporting units for PE-film bands with cutting device
  • Length of the PE-film bands electronically adjustable
  • Microprocessor control with fivelined clear text display
  • Memory for 25 programms
  • Net charging cone, net tube stand to allow a quick net tube exchange
